Model 3/3 Highland 18"-20" Two-Piece Forged Wheels | Tlyard® TLS-01
Redefine your Tesla’s visual impact with the Tlyard® TLS-01, a high-performance two-piece forged wheel inspired by the aggressive, exotic aesthetics of the SF90 Spider. Specifically engineered for both the classic Model 3 and Model 3 Highland, this wheel bridges the gap between daily efficiency and supercar styling.
Technical Specifications
| Series Name | Tlyard® TLS-01 |
| Construction | Two-Piece Forged |
| Material | 6061-T6 Aerospace Aluminum Alloy |
| Vehicle Fitment | Tesla Model 3 & Model 3 Highland (All Variants) |
| Wheel Diameter | 18″ / 19″ / 20″ (Customizable) |
| PCD (Bolt Pattern) | 5×114.3 |
| Center Bore (CB) | 64.1 mm |
| Lug Nut Spec | M14×1.5 |

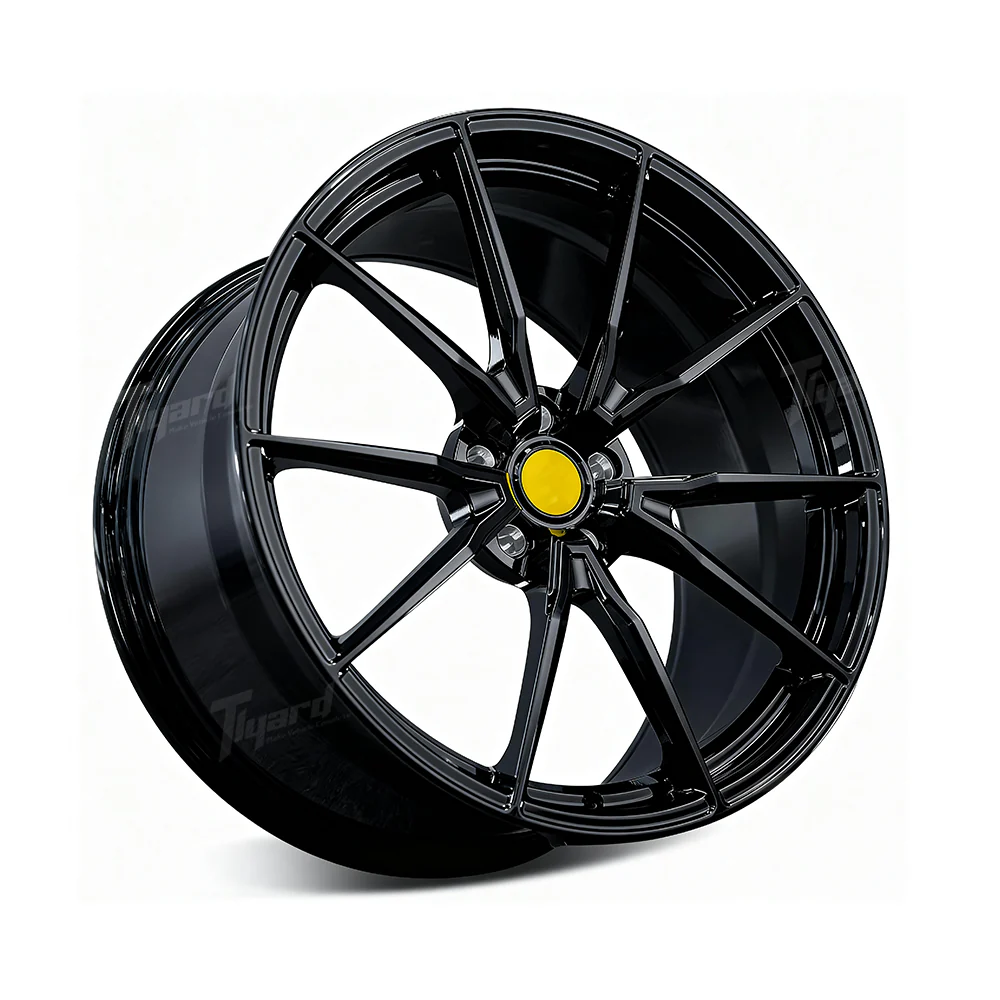

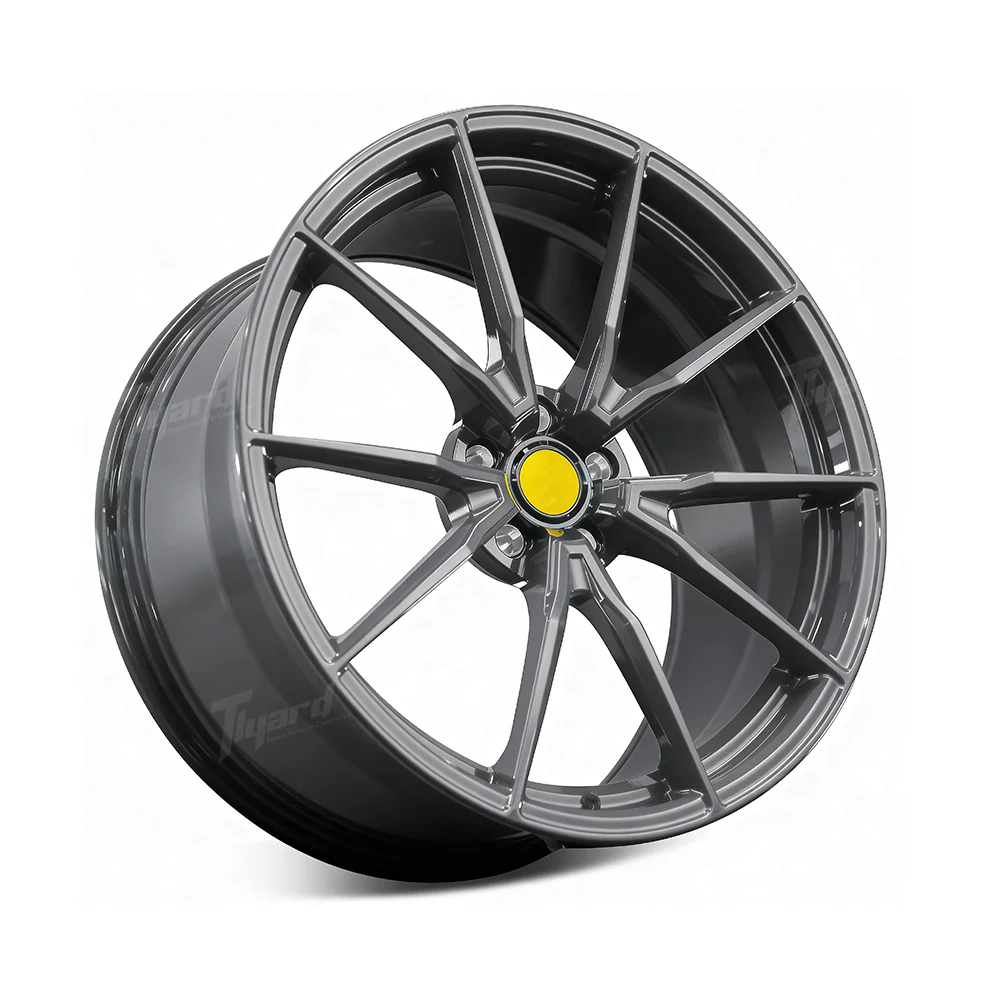

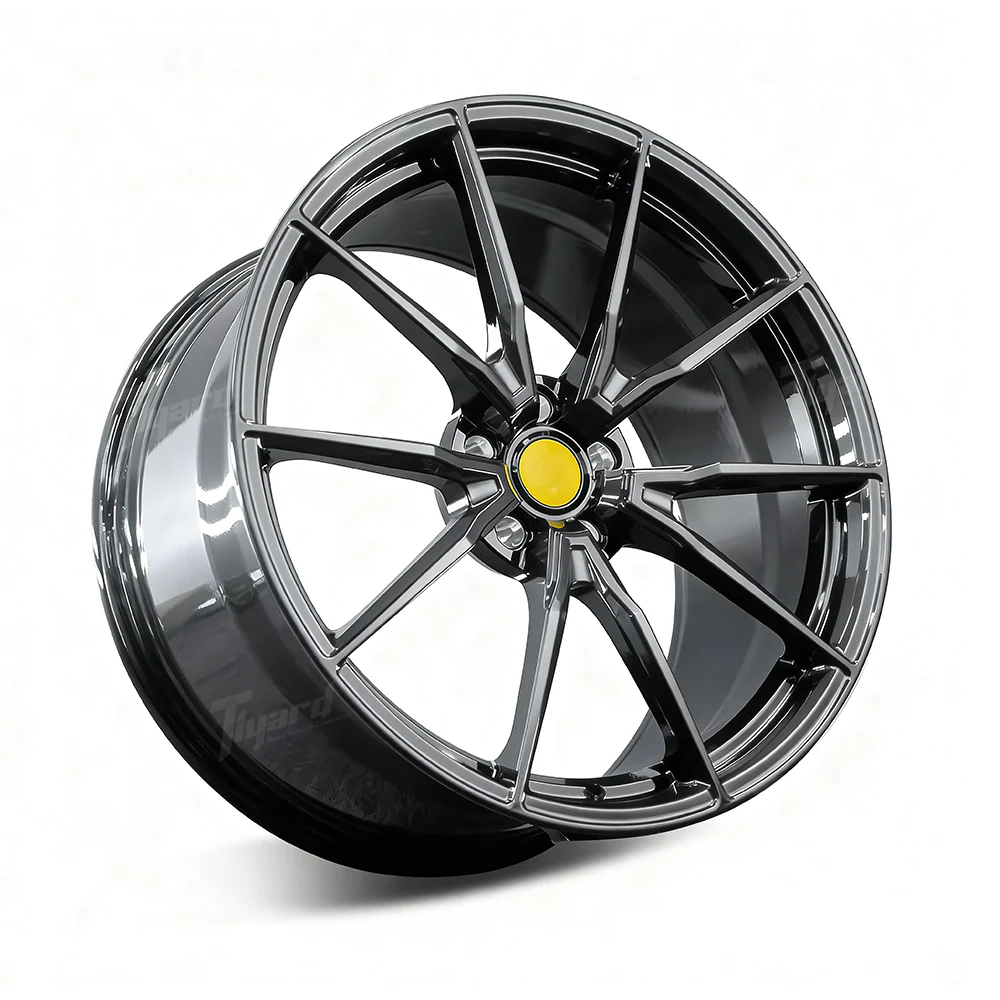

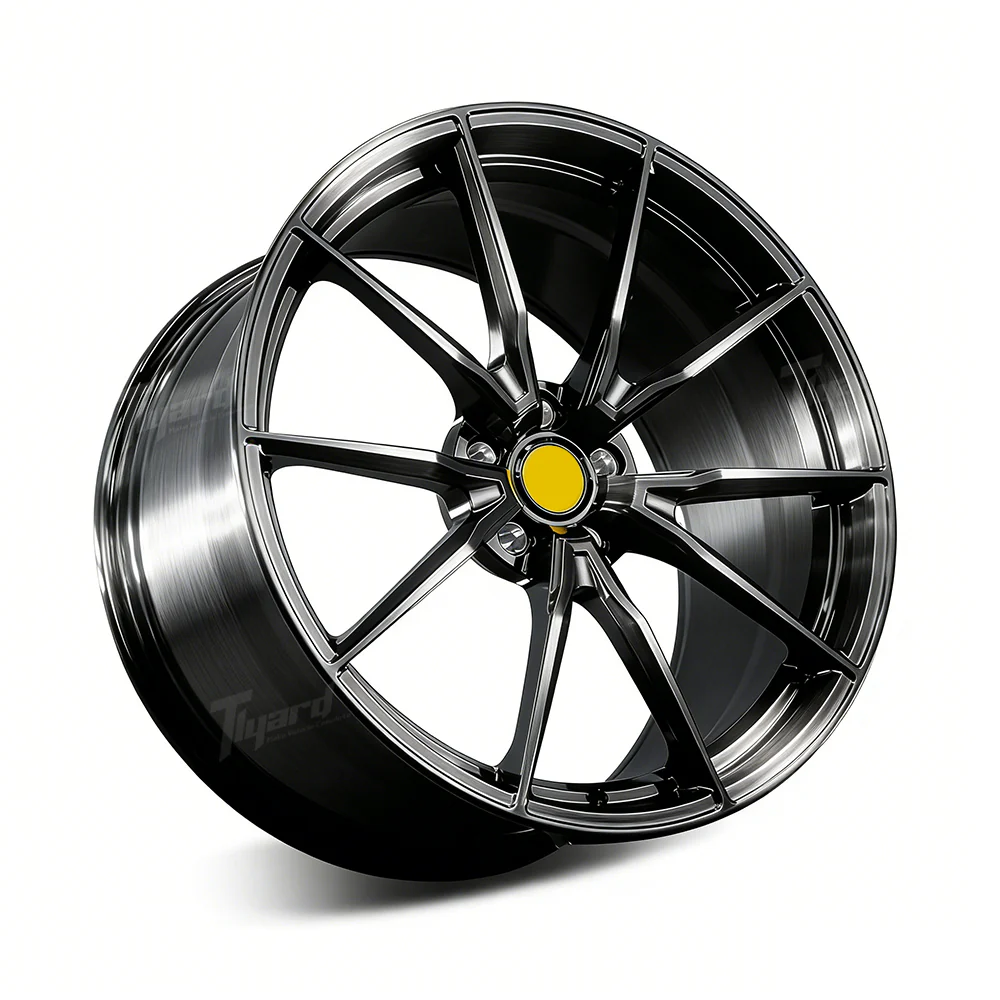

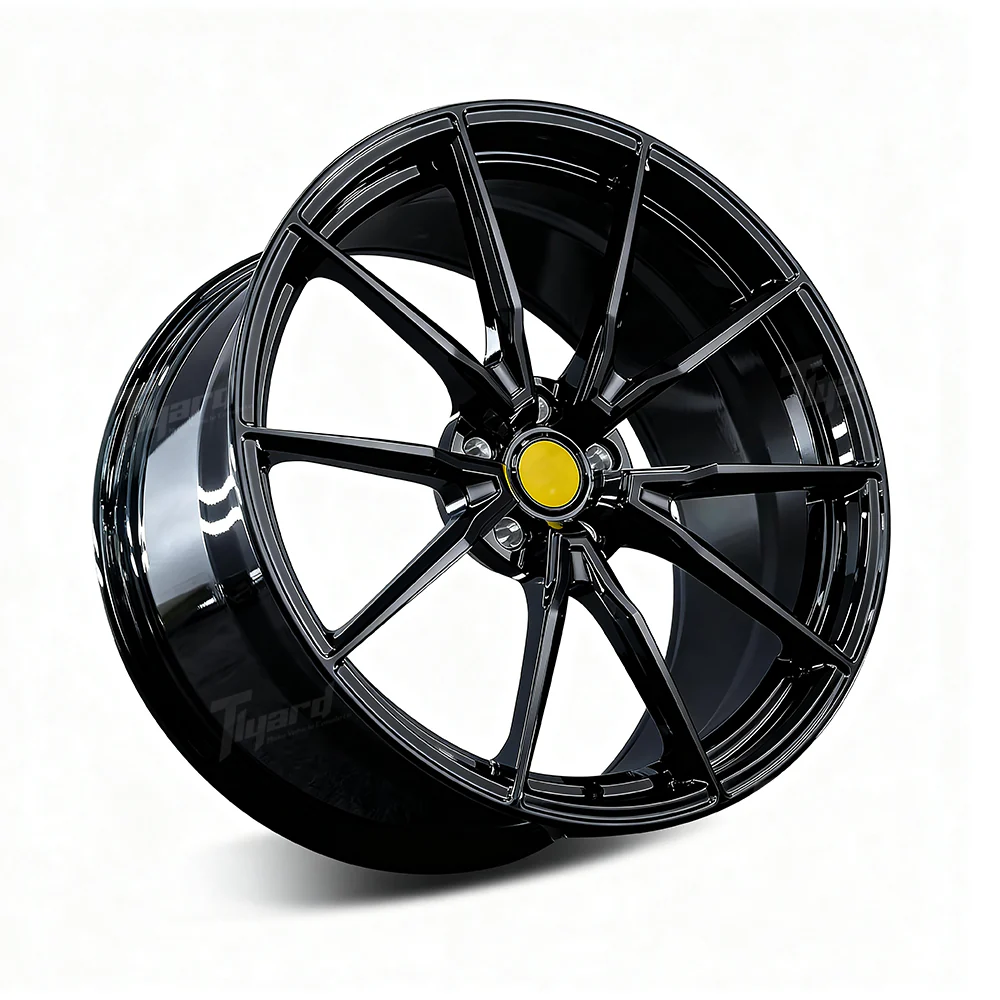

| Finish Options | Gloss Black/Satin Gunmetal/Antique Bronze(Customizable) |
| Load Rating | 900 kg/1984 lbs per wheel (Safety Certified) |
Exotic SF90-Inspired Design
Brings the soul of an Italian supercar to your Tesla, featuring ultra-slim, aerodynamic spokes that create a striking and aggressive profile.
Advanced Two-Piece Forged Construction
Features a modular design with a separate rim and center disk, providing a more complex, multi-dimensional look compared to standard monoblock wheels.
Bespoke Multi-Tone Finishes
The two-piece assembly allows for unique color combinations, such as a Gloss Black barrel paired with a Satin Gray face, for a truly customized aesthetic.
Performance & Efficiency Driven
The lightweight forged design minimizes rotational mass, helping to maintain your Tesla's range (Wh/mi) while improving acceleration and braking response.
Seamless OEM Compatibility
Designed to work perfectly with original Tesla TPMS sensors and factory lug nuts, supporting a clean, factory-plus installation.
Detailed Size & Weight Matrix
| Size | Width & Offset | Tire Recommendation | Estimated Weight (per piece) |
| 18" | 18x8.5" ET+35 | 235/45-18 | ~11.5 kg (25.4 lbs) |
| 19" | 19x8.5" ET+35 | 235/40-19 | ~12.75 kg (28.1 lbs) |
| 20" | 20x9.0" ET+35 | 235/35-20 | ~13.5 kg (29.8 lbs) |
Frequently Asked Questions (FAQ)
Q1: What are the shipping options and delivery times?
| Shipping Method & Cost | Destination | Estimated Time |
|---|---|---|
| Standard Sea Shipping (FREE) | Global | Approximately 30-35 days |
| Expedited Air Freight ($500 USD) | Global | Approximately 15 days after production is complete |
Q2: How long does the custom production take?
Each Tlyard Forged wheel is custom-forged and precision CNC-machined to your exact specifications.The standard production lead time is approximately 30 days.
Q3: How much weight will I save by upgrading to Tlyard Forged wheels?
- For the same size and style, forged wheels are typically about 10%–25% lighter than cast wheels.
Q4: Are forged wheels stronger than the original factory wheels?
- Yes, forged wheels offer superior durability.
- While most factory wheels are cast for mass production, our forging process creates a much denser and more refined metal structure.
- This results in significantly higher structural strength and impact resistance.
Q5: Do I need to buy new tires?
- If you choose the same diameter as your original wheels (e.g., 19" to 19"), you can reuse your existing tires.
- If you upgrade to a larger diameter (e.g., upgrading from 19" to 20" or 21"), you will need to purchase new tires matching the updated specifications.
Q6: Can I customize the style, size, or color?
- Absolutely, we offer comprehensive customization services.
- Our professional team[[email protected]] will work closely with you to ensure the final product matches your exact preferences for your Tesla.
